Hello, My favicon icon shows on safari tabs and I have uploaded all files I think. Google suggests that the file should be at the root folder, or that I should add some code to the header
Can someone take a look to see if I have gone wrong - I added the website to google search console and it says it has crawled the site. I have also uploaded a robots/sitemap file etc.
I’m not an expert on Search results + Fav icons, so I asked Chat GPT, here’s what it came back with:
1. Google doesn’t guarantee favicons in SERPs.
Even if everything is set up perfectly, Google may just not show it. Their systems choose when to display a favicon.2. Google caches favicons heavily.
It can take days or even weeks for Google to refresh. If the favicon was added recently, Google may still be using an old cached state.3. Google expects a very specific setup.
If any of these are off, the favicon won’t appear:
- A valid
<link rel="icon" href="/favicon.ico">or PNG must be referenced.- The file must be reachable at
https://www.domain.com/favicon.ico.- File must be 48Ă—48px minimum, square, supported format (ICO, PNG, SVG).
- No redirects or blocked resources.
4. Your favicon markup matters.
If the theme or CMS injects overly fancy favicon links, Google often ignores them. It wants the simplest, cleanest<link rel="icon">in the<head>.
After doing a little more digging, people say Google strongly expects and favours a .ico file in the root (not something Elements does currently).
So, I’d suggest creating a favicon.ico of your logo and uploading it to the root of your webserver, then add the following line of code to the template of your project.
<link rel="icon" href="/favicon.ico" type="image/x-icon">
Ask google to re-index your site (you can do this via Google Search Console), and give it a few days to see if it then appears.
I don’t know if this will work, but it’s what I’d do (and am going to do as I noticed the Realmac logo is also missing in search results).
Fingers crossed.
Edit: I just used this online tool to convert a png into a .ico file…
Thanks Dan - I have tried that and report back if it works…

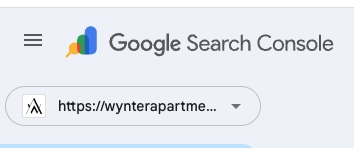

I found I have the same issue. I have two sites, one used the other as a template. The favicon settings are exactly the same in both. Oddly, only one shows the favicon in Google search, or DuckDuckGo for that matter. No idea why but I had the non working site open so threw that bit of code in and republished. Went to get it re-indexed and this is what the Google Console was showing me this with a working favicon -
So who knows where it is picking it up from?

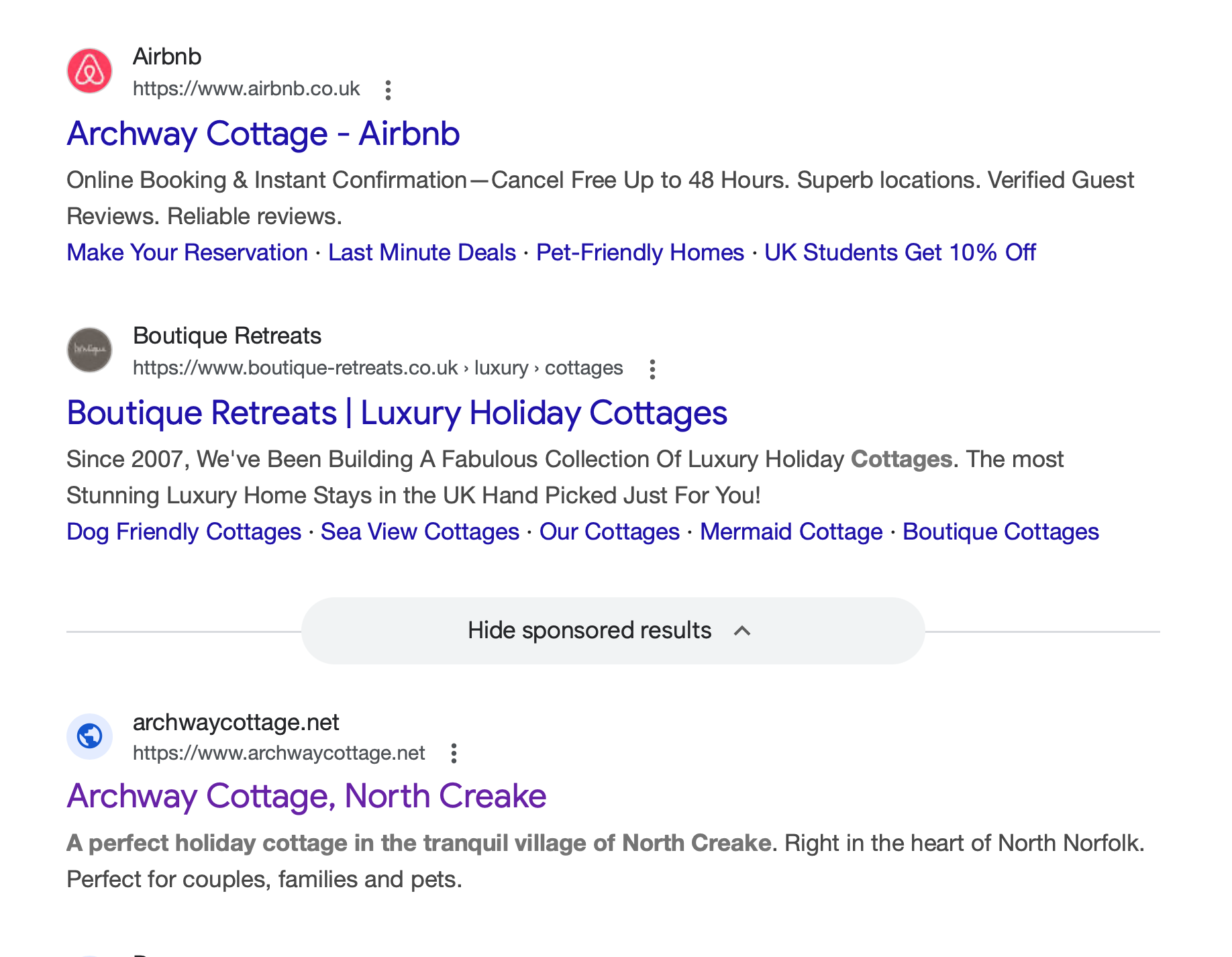

OK - I uploaded a favicon (this one https://www.archwaycottage.net/favicon.ico) and updated the robots file as suggested. I now have a logo showing on the SERPs but its using one that I did have uploaded on the site but have since changed as its unreadable that small. I assume it will naturally update in time?
I would just double check that you don’t have that old favicon somewhere in the settings of your site then I would possibly resubmit to Google and give it a few days. Looks like even though the old one was not showing Google had cached it away and used that when you made a request?
You mentioned updating the robots file although that is not mentioned in this thread, it was adding a line of code to the template?

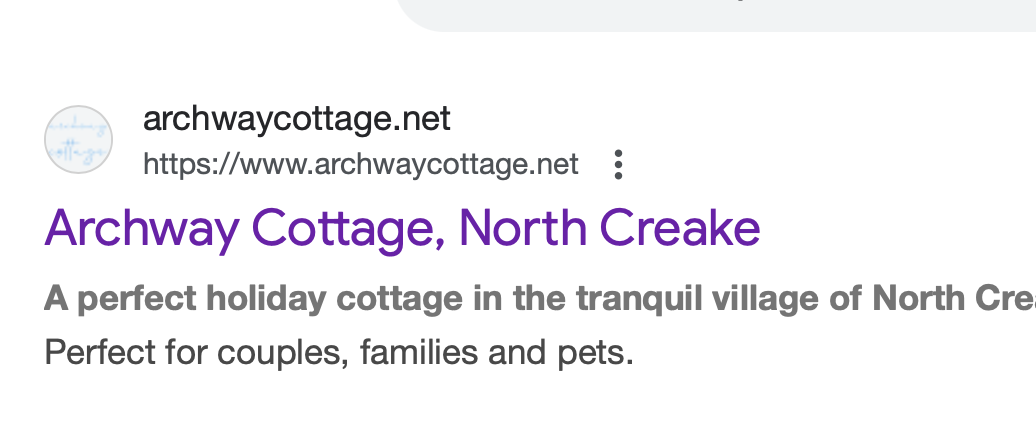

After following the process outlined above it took four days but my missing favicon is now showing on the results page so it should work for you.
EDIT - Looking at your site on an iphone the hamburger icon pushes everything off to the left so you have a border down the right hand side and none of the images are full width. Typo in nesstled as well.

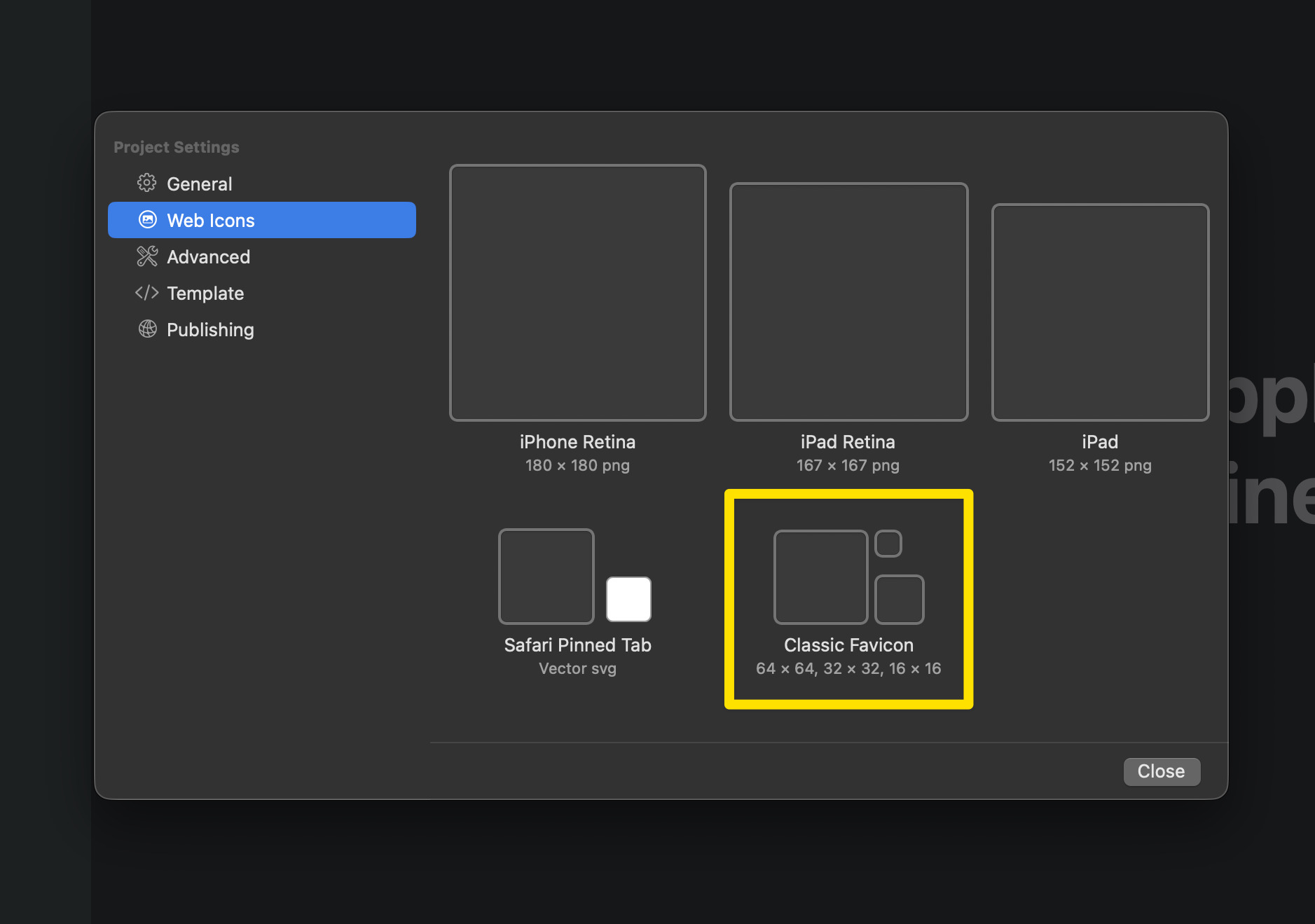

I have been working on updating my own Favicon app. It’s a free app, so am able to let you have the .ico generation part if you want it to get the classic favicon.ico working in Elements project settings > web icons.
I have tested the classic favicon in elements, and it does not “appear” to do anything at all apart from add the three images to the resources. favicon.ico file appears in the root nor is it linked to in the head markup.
With this you “could” reduce the classic favicon wells to a single image well. and pass it through this function.
func createICO(from image: NSImage, sizes: [Int]) -> Data? {
guard !sizes.isEmpty else {
print("Error: No sizes specified.")
return nil
}
var icoData = Data()
// ICO Header: Reserved (2 bytes), Type (2 bytes), Count (2 bytes)
icoData.append(contentsOf: [0x00, 0x00, 0x01, 0x00, UInt8(sizes.count), 0x00])
var imageDataArray = [Data]()
var offset = 6 + sizes.count * 16 // Initial offset after header + directory entries
// Closure to resize an NSImage
let resize: (NSImage, NSSize) -> NSImage? = { image, targetSize in
let frame = NSRect(x: 0, y: 0, width: targetSize.width, height: targetSize.height)
guard let representation = image.bestRepresentation(for: frame, context: nil, hints: nil) else {
return nil
}
let resizedImage = NSImage(size: targetSize, flipped: false, drawingHandler: { (_) -> Bool in
return representation.draw(in: frame)
})
return resizedImage
}
// Closure to convert NSImage to PNG data
let pngData: (NSImage) -> Data? = { image in
guard let tiffData = image.tiffRepresentation,
let bitmap = NSBitmapImageRep(data: tiffData) else {
return nil
}
return bitmap.representation(using: .png, properties: [:])
}
// Closure to convert UInt32 to little-endian Data
let littleEndianData: (UInt32) -> Data = { value in
var littleEndianValue = value.littleEndian
return Data(bytes: &littleEndianValue, count: MemoryLayout<UInt32>.size)
}
for size in sizes {
guard size <= 256 else {
print("Unsupported size: \(size)x\(size). Skipping sizes larger than 256x256.")
continue
}
// Resize the input image to the target size
guard let resizedImage = resize(image, NSSize(width: size, height: size)) else {
print("Failed to resize image to \(size)x\(size)")
continue
}
print("Resized image to \(Int(resizedImage.size.width))x\(Int(resizedImage.size.height))")
// Convert resized image to PNG data
guard let imageData = pngData(resizedImage) else {
print("Failed to create PNG data for size \(size)x\(size)")
continue
}
imageDataArray.append(imageData)
// ICO Directory Entry for each image
let width = UInt8(size == 256 ? 0 : size) // 0 represents 256 in ICO format
let height = UInt8(size == 256 ? 0 : size)
icoData.append(width) // Width
icoData.append(height) // Height
icoData.append(0x00) // Color Palette (0 for no palette)
icoData.append(0x00) // Reserved (always 0)
icoData.append(contentsOf: [0x01, 0x00]) // Color Planes (1)
icoData.append(contentsOf: [0x20, 0x00]) // Bits Per Pixel (32-bit)
icoData.append(littleEndianData(UInt32(imageData.count))) // Size of the image data in bytes
icoData.append(littleEndianData(UInt32(offset))) // Offset where this image data starts
// Update offset for the next image data
offset += imageData.count
}
// Append all image data sequentially after the ICO directory entries
for data in imageDataArray {
icoData.append(data)
}
return icoData
}
Thanks @Doobox, that’s actually very helpful! Tidying up web icons has been on my list for a long time, I’ll get this in at the same time.
Cheers!
Now you tell me!
Mine still works as I told you from years ago!
If you have a favicon.ico in the root, it will normally get picked up, even if it’s not linked to in the head markup.
I see OP’s issue has still not resolved itself.
I just tried this as well after Gary suggested the same thing and it worked. His new Favicon app made this very easy as it generated the correct ICO.
How do I get this free app please? My icon in the google SERPS is still showing an old cached icon
And a “Ruff” video overview, I did for the beta testers.
Pretty sure that’s the crux of it though, clearing your browser cache, you will see that you see any new icon you deploy, so cached locally. SERPS obviously cached on Google servers.
Highly recommend Gary and all his work, I have the original app for yonks and App still works but now he has surpassed himself with this upgrade. I commend this app to all and its great to see contribution Gary does for this community!
Very handy little app. Allowed me to get my Favicons working. Bravo!
Thanks - I am on Mac OS 15.7.1 - does it work on that
Sorry, no it’s Tahoe 26 or greater. It was a purely form over function choice, for this new version.
